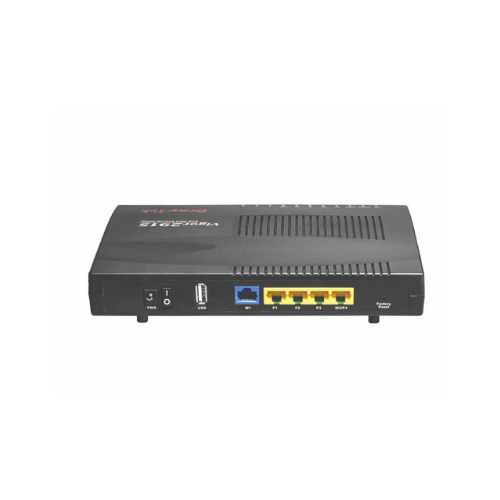

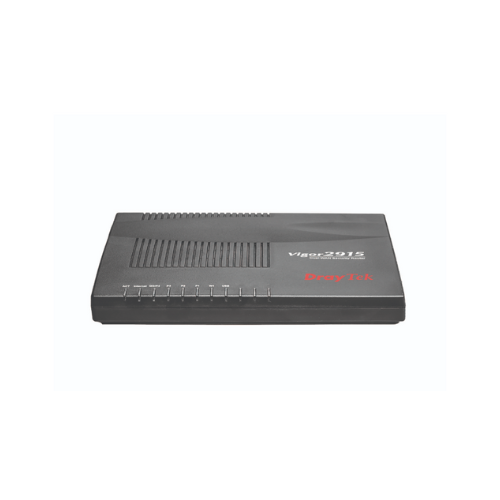

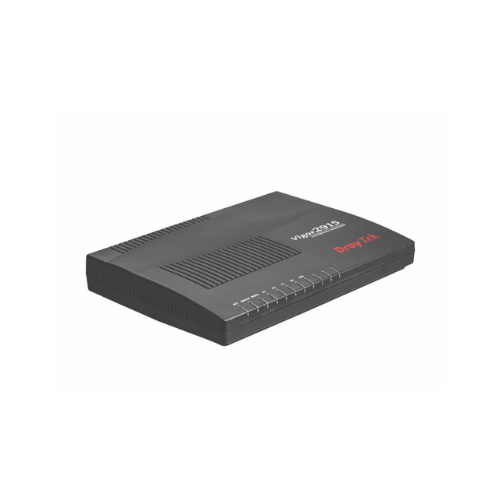

DrayTek Vigor2915

Router VPN chuyên nghiệp cho Doanh Nghiệp SMB, Nhà hàng, Quán Cafe, phòng Game – Hỗ trợ Wi-Fi Marketing.

1 port WAN1 Gigabit Ethernet, RJ45
WAN 2 được chuyển đổi từ LAN 4 hoặc USB kết nối 3G/4G
4 port LAN Gigabit Ethernet, RJ45.
1 cổng USB sử dụng cho USB 3G/4G, máy in…
NAT Throughput lên đến 500Mbps, NAT sessions: 30.000,…
Hỗ trợ lên đến 16 kênh VPN với 8 kênh VPN-SSL Tunel.
Object-based SPI Firewall, Content Security Management (CSM), QoS.
Kiểm soát và quản lý băng thông giúp tối ưu hóa đường truyền internet.
Khả năng xử lý được nâng cao, cân bằng tải linh hoạt và mạnh mẽ hơn.
Hỗ trợ IPv4 và IPv6.
Cho phép quản lý từ xa qua Cloud VigorACS2.

Thông số kỹ thuật

Phần cứng
Port	2 port WAN Gigabit (10/100/1000Mbps, RJ-45). WAN 2 được chuyển đổi từ LAN 4. 4 port LAN Gigabit (10/100/1000Mbps, RJ-45). 1 port USB 3G/4G.
Nguồn	Power Adapter DC 12V/1A Max. Power 10 watt
Nút điều khiển	1 x Factory Reset Button
Trọng lượng	400g
Phần mềm
WAN	Ethernet IPv4- DHCP Client, Static IP, PPPoE, PPTP, L2TP, 802.1p/q Multi-VLAN Tagging IPv6- Tunnel Mode: PPP, TSPC, AICCU, 6in4, 6rd Dual Stack:DHCPv6 Client, Static IPv6, DSLite* USB WAN PPP Outbound Policy-based Load-balance WAN Connection Failover 30,000 NAT Sessions
Network	DHCP Client/Relay/Server RADVD for IPv6 DHCPv6 Server Static IPv6 Address Configuration IGMP Proxy V2/V3 IGMP Snooping Dynamic DNS NTP Client RADIUS Client DNS Cache/Proxy UPnP 30 Sessions Routing Protocol: Static Routing RIPv2 VLAN Tagging(802. 1q) on LAN* Support Route Policy Function
Management	Web-based User Interface (HTTP/HTTPS) Quick Start Wizard CLI (Command Line Interface, T elnet/SSH) Administration Access Control Configuration Backup/Restore Built-in Diagnostic Function Firmware Upgrade via TFTP/FTP/HTTP/TR-069 Logging via Syslog SNMP V2/V3 Management Session Time Out Two-level Management (Admin/User Mode) External Device TR-069
Chất lượng dịch vụ	QoS : Guarantee Bandwidth for V oIP (VoIP QoS) Class-based Bandwidth Guarantee by User-defined Traffic Categories DiffServ Code Point Classifying 4-level Priority for Each Direction (Inbound/Outbound) Bandwidth Borrowed Bandwidth/Session Limitation Layer-3 (TOS/DSCP) QoS Mapping Smart Bandwidth Limitation (Triggered by Traffic/Session)
VPN	Offer 16 VPN Tunnels and 8 SSL VPN tunnels Protocol : PPTP, IPSec, L2TP, L2TP over IPSec Encryption : MPPE and Hardware-based AES/DES/3DES Authentication : MD5, SHA-1 IKE Authentication : Pre-shared key and Digital Signature (X.509) LAN-to-LAN, Host-to-LAN IPsec NAT-traversal (NAT-T) Dead Peer Detection (DPD) VPN Backup Mode DHCP over IPSec VPN Pass-through VPN Wizard mOTP
Tính năng nâng cao	Firewall Multi-NAT, DMZ Host, Port-redirection and Open Port Object-based Firewall MAC Address Filter SPI (Stateful Packet Inspection) (Flow Track) DoS/ DDoS Prevention IP Address Anti-spoofing E-mail Alert and Logging via Syslog Bind IP to MAC Address Time Schedule Control User Management CSM (Content Security Management) IM/P2P Application GlobalView Web Content Filter (Powered by CYREN ) URL Content Filter : URL Keyword Blocking (Whitelist and Blacklist) Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking, Excepting Subnets
USB	File Sharing: Support FAT32 File System Support FTP Function for File Sharing Support Samba for File Sharing 3.5G (HSDPA)/4G (LTE)* as WAN3
Thông số khác
Môi trường	Temperature Operating : 0°C ~ 45°C Temperature Storage : -25°C ~ 70°C Humidity 10% ~ 90% ( non-condensing )
