Home / DRAYTEK / Router

Vigor3910

Categories: DRAYTEK, Router
  • Description

Router VPN cân bằng tải hiệu năng cao dành cho Doanh nghiệp lớn, Hotel, Resort … Hỗ trợ WiFi Marketing.

  • 2 port 10 Gigabit WAN / LAN slot SFP+ (cho phép chuyển đổi WAN/LAN linh hoạt).
  • 2 port 2.5 Gigabit WAN / LAN, RJ45 (cho phép chuyển đổi WAN/LAN linh hoạt).
  • 4 port Gigabit LAN/WAN, RJ45 (P5-P8).
  • 4 port Gigabit LAN (Ethernet 10/100/1000Mbps), RJ-45 (P9-P12).
  • 2 port USB
  • Multi-WAN Load Balancing and Failover, hỗ trợ đường truyền đa dịch vụ (IPTV, Internet, VoIP…).
  • NAT Session: 1.000.000, NAT Throughtput: 8.5Gb/s với khả năng chịu tải lên đến 500+ user
  • Hỗ trợ triển khai nhiều dịch vụ: Leased line, L2VPN, L3VPN, MetroNET…
  • Hỗ trợ chia 50 lớp mạng khác nhau (801.2q VLAN Tag), DMZ LAN, IP routed LAN.
  • VPN server 500 kênh (OpenVPN, IPSec(IKEv1, IKEv2, XAuth), 200 kênh VPN SSL….), VPN Trunking (Load balancing/Backup)
  • Web Portal: Hiện trang quảng cáo khi khách hàng kết nối internet
  • Tích hợp Wi-Fi Marketing từ các nhà phát triển hàng đầu như Meganet, VNWIFI, Nextify…
  • Kiểm soát và quản lý băng thông tối ưu đường truyền Internet, chế độ Hight-Availability
  • Firewall mạnh mẽ, linh hoạt (IP/MAC Address, Port Service,URL/Web Content Filter…).
  • DrayDDNS tên miền động miễn phí của DrayTek
  • Quản lý tập trung cho 50 Access Point DrayTek (APM), 30 Switch (SWM)
  • Quản lý tập trung Vigor3910 bằng phần mềm DrayTek VigorACS 2 hoặc Cloud DrayTek Free

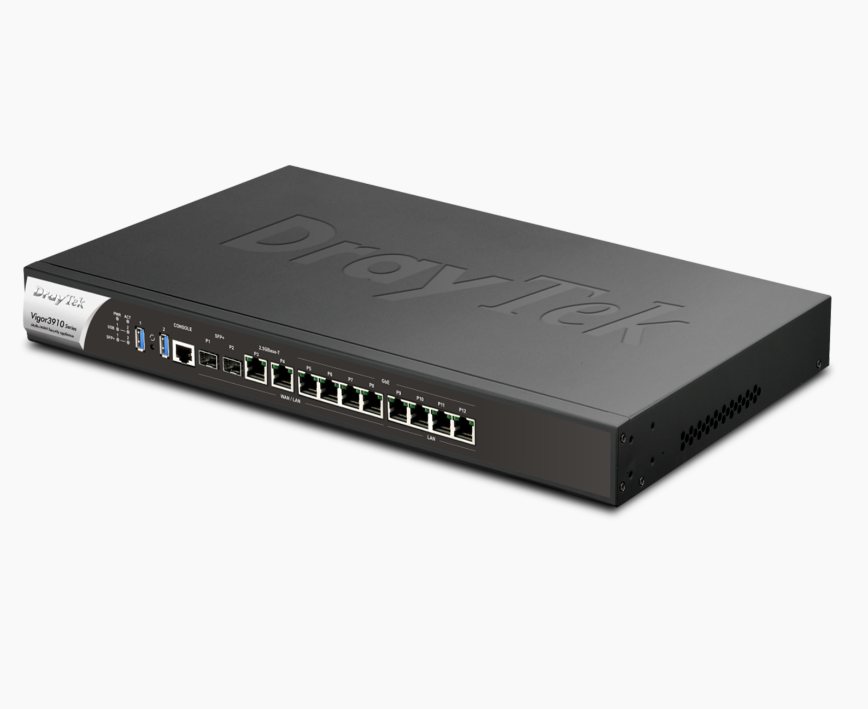

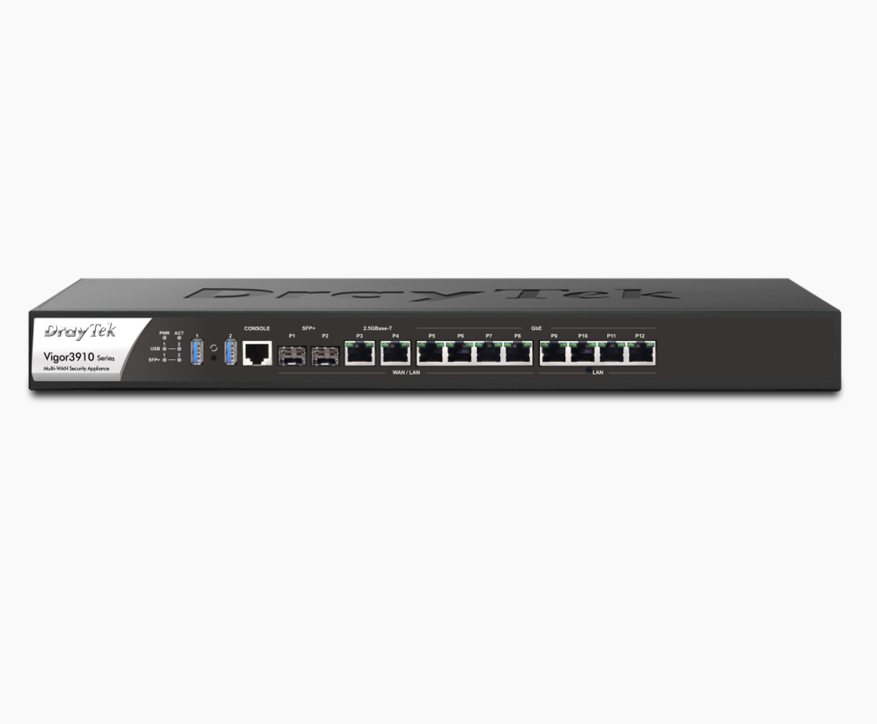

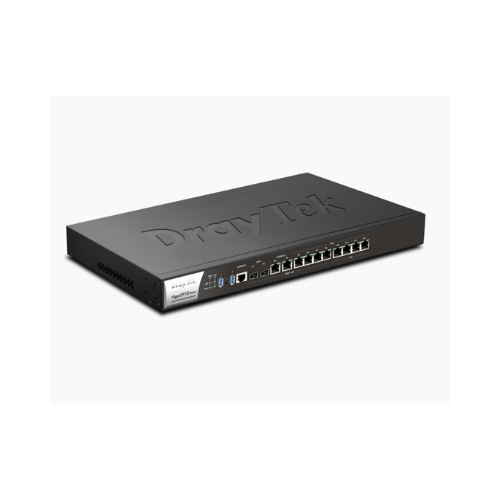

Thiết bị cân bằng tải DrayTek Vigor3910 (V3910)
WAN/LAN Switchable Port 2x 10G/2.5G/1G SFP+ Fiber Slot
2x 2.5G/1G/100M/10M Ethernet, RJ-45
4x 1G/100M/10M Ethernet, RJ-45
Fixed LAN Port 4x 1G/100M/10M Ethernet, RJ-45
USB Port 2x USB 3.0 for storage* (since f/w v3.9.6)
Console Port 1x RJ-45
Button 1x Factory Reset
Performance
NAT Throughput 9 Gbps
IPsec VPN Performance 3 Gbps
SSL VPN Performance 1.3 Gbps
NAT Sessions 1,000,000
Max. Concurrent VPN Tunnels 500
Max. Concurrent OpenVPN + SSL VPN 200
Internet Connection
IPv4 PPPoE, DHCP, Static IP
IPv6 PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
802.1p/q Multi-VLAN Tagging
Multi-VLAN/PVC
Load Balancing IP-based, Session-based
WAN Active on Demand Link Failure, Traffic Threshold
Connection Detection ARP, Ping, Strict ARP
WAN Data Budget  (since f/w v3.9.6)
Dynamic DNS
DrayDDNS
LAN Management
VLAN 802.1q Tag-based, Port-based
Max. Number of VLAN 100
Number of LAN Subnet 100
DHCP Server Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
LAN IP Alias
IP Pool Count Up to 4K per LAN Subnet
PPPoE Server
Port Mirroring
Local DNS Server
Conditional DNS Forwarding
Hotspot Web Portal
Hotspot Authentication Click-Through, Social Login, SMS PIN, RADIUS, External Portal Server
Networking
Routing IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP v1/v2/ng, OSPFv2, BGP
Policy-based Routing Protocol, IP Address, Port, Domain, Country
High Availability Active-Standby, Hot-Standby
DNS Security (DNSSEC)
IGMP IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave(since f/w v3.9.6)
Local RADIUS server
VPN
LAN-to-LAN
Teleworker-to-LAN
Protocols PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IPsec-XAuth, OpenVPN(Host to LAN)
User Authentication Local, RADIUS, LDAP, TACACS+, mOTP
IKE Authentication Pre-Shared Key, X.509, XAuth, EAP
IPsec Authentication SHA-1, SHA-256, MD5
Encryption MPPE, DES, 3DES, AES
VPN Trunk (Redundancy) Load Balancing, Failover
Single-Armed VPN
NAT-Traversal (NAT-T)
DrayTek VPN Matcher
Firewall & Content Filtering
NAT Port Redirection, Open Ports, Port Triggering, DMZ Host
ALG (Application Layer Gateway) SIP, RTSP, FTP, H.323
VPN Pass-Through PPTP, L2TP, IPsec
IP-based Firewall Policy
Content Filtering Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required)
DoS Attack Defense
Spoofing Defense
Bandwidth Management
IP-based Bandwidth Limit
IP-based Session Limit
QoS (Quality of Service) TOS, DSCP, 802.1p, IP Address, Service Type
VoIP Prioritization
Management
Local Service HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069
Config File Export & Import
Firmware Upgrade TFTP, HTTP, TR-069
2-Level Administration Privilege
Access Control Access List, Brute Force Protection
Syslog
Notification Alert SMS, E-mail
SNMP v1, v2c, v3
Managed by VigorACS
Central AP Management 50 VigorAPs
Central Switch Management 30 VigorSwitches
Physical
Rack Mountable  Mouting Kit Included
Dimension 443 mm x 285 mm x 45 mm
Weight 3.23 kg
Power AC 110~220V @ 1A
Max.Power Consumption 35 watts
Operating Temperature 0 to 45°C
Storage Temperature -10 to 55°C
Operating Humidity (non-condensing) 10 to 90%
